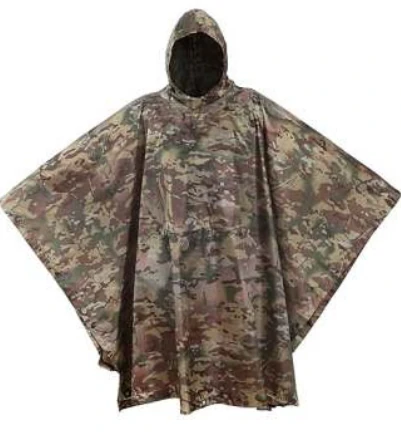

Anti IR Poncho
The IR Camouflage Poncho is a lightweight, wearable thermal and visual signature management garment designed to reduce the detectability of personnel against EO/IR sensors operating in the Mid-Wave Infrared (MWIR: 3–5 µm), and Long-Wave Infrared (LWIR: 8–14 µm) bands. The poncho is intended for dismounted soldiers, reconnaissance teams, and static observation roles in diverse operational environments.
Intended Application:
- Personal IR signature reduction
- Visual and NIR camouflage
- Thermal blending with natural background
- Protection against aerial and ground-based EO/IR surveillance (UAVs, thermal imagers, IR pods)
Construction & Design:
Garment Type
Hooded Poncho (free-size)
Wearing Style
Over-uniform, rapid don/doff
Coverage Area
Head, torso, upper arms
Cut
Loose-fit for ventilation and thermal decoupling
Stitching
IR-neutral, low-gloss thread
Seams
Reinforced, taped (where applicable)
Spectral Performance / Environmental Resistance Requirements
| Spectral Band | Requirement |
|---|---|
| MWIR (3–5 µm) | Reduced thermal contrast vs background |
| LWIR (8–14 µm) | Controlled emissivity to suppress hot spots |
| Operating Temperature | −20 °C to +55 °C |
| Water Resistance | 30 cm for 30 min |
| Dust Resistance | Yes |
Thermal & IR Characteristics:
| Parameter | Typical Requirement |
|---|---|
| Emissivity (8–14 µm) | ≤ 0.65 (background matched) |
| Thermal Contrast (ΔT) | ≤ ±2 °C w.r.t. ambient background |
| Hot Spot Suppression | Yes (body heat diffusion) |
| Thermal Stability | Stable under solar loading |
Physical Characteristics :
| Parameter | Typical Requirement |
|---|---|
| Weight | ≤ 700 g (approx.) |
| Thickness | ≤ 2.5 mm |
| Pack Size | Compact, foldable |
| Thermal Stability | Stable under solar loading |
Comfort & Ergonomics:
- Breathable construction to reduce heat stress
- Adequate airflow to minimize perspiration buildup
- Hood compatible with helmet and headgear
- Non-restrictive movement during walking and crawling
Compliance
- MIL 53134 (4.4.2.3.2).( Thermal Properties)
- ISO-811 (Determination to resistance to water penetration Static 30 cm for 30 min)
Accessories (Optional):
- Carry pouch High grade
- IR camouflage face veil
