Inflatable Pillow Tank

MAAN Inflatable Pillow Tanks are designed for water and chemical storage. The tanks allow storage of hydrocarbons, oil, drinking water, wastewater, etc. It can be used as a mobile service station and deployed quickly and easily, and can be folded.

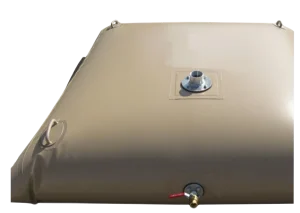

Inflatable pillow tans

Salient features

  • Self-supporting Independent structure.

  • No Special Installation required.

  • Virtually Leak proof as Robust sealing on all sides.

  • Foldability hence easy to deploy and repack when not in use

  • Resistance to both hot and cold temperatures.

  • Foldability hence easy to deploy and repack when not in use.

  • Meets widespread liquid storage and transport needs.

  • Customized as per required Capacity.

  • Stability as weight distributed on large area

  • No Special maintenance required

  • Easy to Stack and transport.

  • Easy to Clean, Fill and Drain when needed.

  • Totally non-Corrosive.

Working Temperature:

-10 to +70 ºC
and UV Resistance for Min. 3 years

Shelf Life:

3 years in packed condition. Warranty: One year for any manufacturing defects only. Environmental protection level: ‘REACH’ Food grade/Chemical resistant

Tank capacity

300L to 10,000L

Material:

Both Sides PVC coated High Strength Fabrics / High Tenacity Thermoplastics.

Applications

  • Storage of potable water.
  • Storage of Ground Water
  • Temporary Storage of Potable water during public Events etc.
  • Transportation of Potable water / Mild Chemicals in Mountainous regions, Hilly terrains through Mules etc.
  • Transportation of Water or Chemicals on Small boats ferries etc.
  • Temporary storage of liquid during routine maintenance and repairs.

Target Segment

  • Defence / Military use, Rapid deployment,
  • Disaster/Emergency response, Fire
  • Departments, Agriculture Department,
  • Forest Department and Event Management etc.

Optional Accessories

  • All connection and adaptor types as per National or International standards like BSP, NPT etc. can be provided.
  • Special Connectors can be offered on request.
  • Ground sheets.
  • UV Covers/Dust Covers.
  • Ball valves, elbows, small pumps, hoses etc.
IPT Data Table (div-based)

IPT — Model / Capacity / Dimension / Weight

Model
Capacity (L)
Dimension (CM)
Weight (KG)
IPT 300
300
100 X 150
15
IPT 500
500
100 X 200
20
IPT 1000
1000
145 X 260
35
IPT 1500
1500
180 X 280
50
IPT 1900
1900
220 x 300
64
IPT 3800
3800
240 x 460
84
IPT 5700
5700
300 x 460
100
IPT 9500
9500
410 x 460
120
IPT 12000
12000
420 x 540
123

Note: table built using div elements and CSS grid. Responsive behaviour stacks rows on small screens.

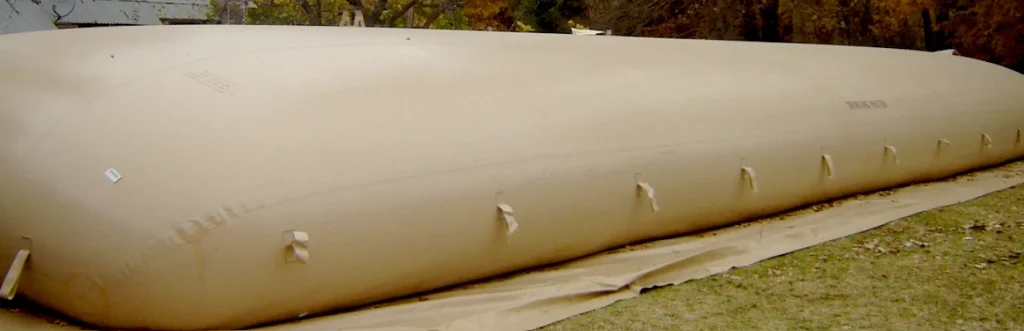

Inflatable Pillow tank
