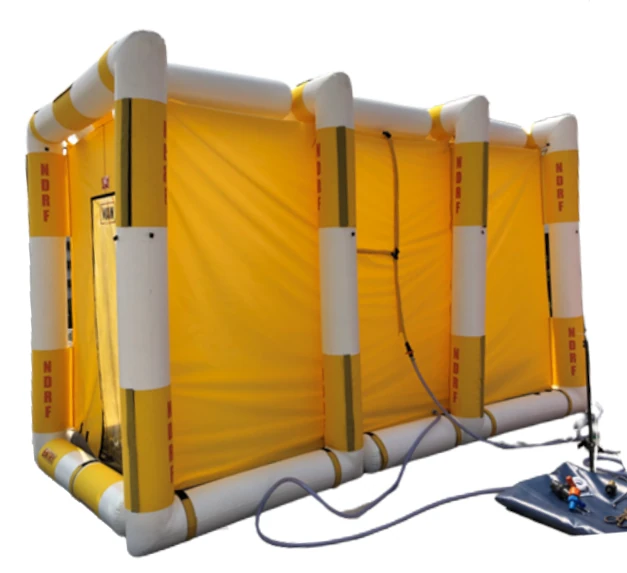

Personal Protective Decontamination Unit

Lightweight and quick to deploy, the inflatable Personal Protective Decontamination Unit viz PPDU from Maan Defence provides quick response in case of contamination of the individual due to any reason be it CBRN or Viral endemic. Fully inflatable, the PPDU can be set up in a matter of minutes, and will stay standing without continuous inflation. With no mechanical framework the PPDU is lightweight to transport and compact to store. PPDU can be used on hard or soft surface, and guy ropes are provided for securing in position during inclement weather.
Raised floor panels prevent contact with contaminated shower wash-off, which is collected in a chemically resistant sump. PPDUs come with a viewing window and optional chemically resistant nitrile rubber gloves to allow assisted decontamination by a third party standing outside of the unit.

Salient features

  • Lightweight and portable

  • Can be set up within a matter of minutes and will stay standing without continuous inflation

  • Raised floor panels prevent contact with contaminated water or treated decontaminating liquid waste which is then disposed of.

  • Can be used on hard or soft standing and guy ropes are provided for securing in position

  • Requires Minimal training, servicing and maintenance costs

PPDU chamber size:

12ft x 6ft x 7ft and compact sizes

Colour:

Yellow, orange and as per requirement

PPDU structure:

Entire ensemble consists as below:

  • Separate changing room.
  • Shower room (decontamination room).
  • Dressing room.
  • Observation windows and doors

Operating pressure:

2.0 psi to 2.2psi
Inflation/deflation Valves: D-7 MODEL 2
Nos.As per BS EN 16051-1 :2012
Pressure relief valve: A-6 MODEL @3.25 ps

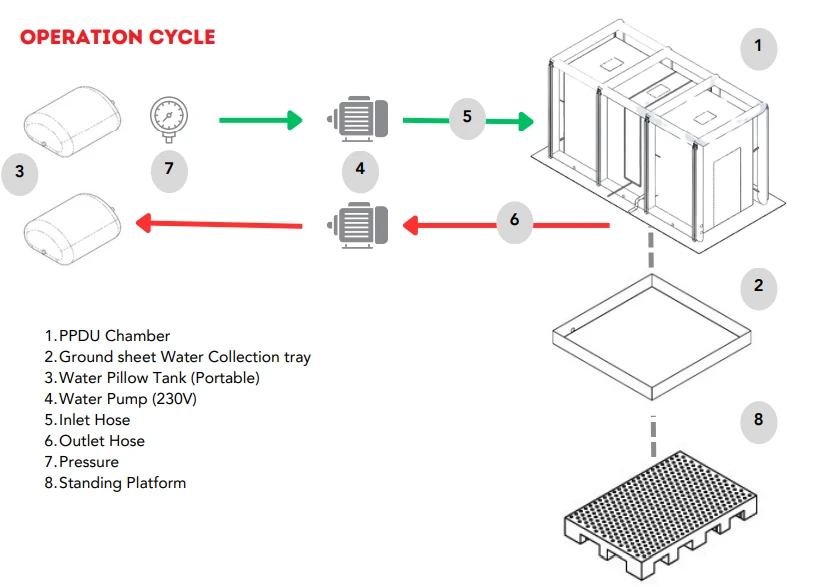

Integrated Supply

  • Water pillow tank 600Lit x 2nos
  • Ground sheet with contaminated liquid tub and drain system
  • Lay flat Water hose
  • Standing platform in each room
  • Electric inflator blower 800W x 1nos
  • 6L Air cylinder x 1nos(optional)
  • Hand shower or sprinkler as per customer requirements
  • Regulating valve with fittings.
  • Panel board with water level sensing switch for pump auto start/ stop.

Accessories

  • 1.Repair kit
  • Packing and handling bags
  • Guy ropes
  • Ground pitons
  • Water hoses
  • Hammer
  • Hand shower or sprinkler as per customer requirements
  • Regulating valve with fittings.
  • Panel board with water level sensing switch for pump auto start/ stop.Water hoses1.0 hp water supply pump with pressure switch.

PPDU CHAMBER MATERIAL SPECIFICATION

PPDU frame fabric specification | Dual side FR PVC + TPU coated polyester Fabric features:
  • Excellent strip tensile, tear strength with cold resistance of minus 20 degree
  • Fire retardant rating at B1 with ANTI UV properties for use in all type of weather condition.
  • Anti mildew to achieve level 0 coating for protect from fungus or mold growth.
PPDU cover and partition fabric specification | PU coated Nylon/Polyester
Fabric features:
  • Use specially design both side coated or single side coated fabric, treated with Antimicrobial
  • Treatment for decontamination application.
  • FR treated
  • UV protacted
  • Rain resistance 40L/sqm
PPDU pillow tank fabric specification | Dual side PVC coated polyester Fabric features:
  • Design as per US FDA 21 CFR 175.300 achieve quality of storage water.
  • Additionally Fabric compliance with REACH for for human health protection.
